MDP1200-US24-FF

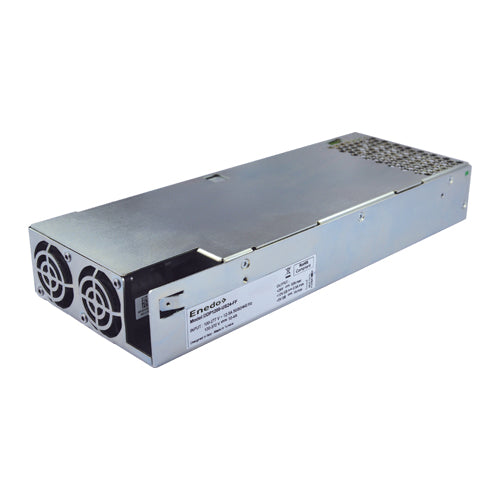

24Vdc Medical Power Supply Low Profile, Front Fan 24 Volts 50 Amps 1200 WattsManufacturer: Enedo
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$435.31
2
$429.58
10
$417.73
25
$406.13
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
50 Amps
Max Power:
1200 Watts
Features
Efore MDP1200-US24-FF highly efficient medical power supply with built-in front fan
AC input range: 90~264Vac (low line de-rating)
Operating temperature: -20~+70°C
Safety approvals: ANSI/AAMI ES 60601-1 and IEC/EN 60601-1 3rd Edition
IEC 60601-1-2 4th Edition EMC compliant
2xMOPP
Suitable for BF applications
Low leakage current: <400µA
12V, 0.5A & +5V, 1A stand-by outputs (6 watts max combined power)
PMBus digital power-management protocol
Built-in PFC
Remote On/Off
PS-Inhibit and voltage adjustment
Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
Power good and remote sense signals
1U low profile design
Fan speed control to minimize audible noise
Protections: over temperature / over voltage / over current / short circuit
Efore 5 year warranty
