Power Worth Searching For

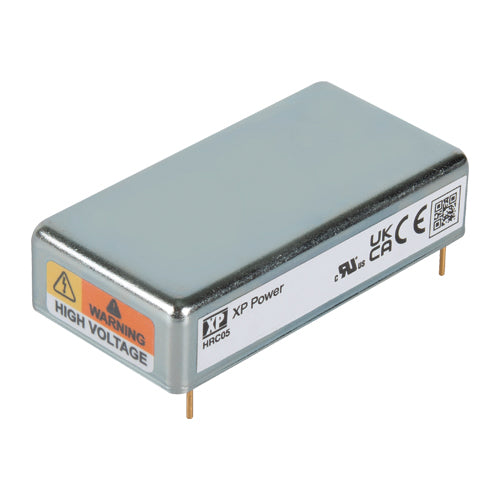

HRC0524S1K0N
-1000Vdc 5mA, High Voltage DC/DC Converter, -1000 Volts, 5mA, Input Voltage: 22-30VdcManufacturer: XP Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$267.00
5
$258.99
10
$250.98
25
$240.30
100
$224.28
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
22~30Vdc
Output Voltage:
-1000Vdc
Output Max Current:
0.005 Amps
Max Power:
5 Watts
Features
DC/HVDC converter
22~30Vdc input range
Operating temperature range: -40~+70°C
Industrial safety certification: UL/IEC/EN 62368-1 UL/IEC/EN 61010-1
No minimum load required
Remote On/Off
5Vdc reference output
Fully regulated output
Adjustable output voltage
Protections: short circuit / overload / undervoltage-lockout / over temperature / input overvoltage / over programming
XP Power 3 year warranty
HRC0524S1K0N
-1000Vdc 5mA, High Voltage DC/DC Converter, -1000 Volts, 5mA, Input Voltage: 22-30VdcManufacturer: XP Power
View Data Sheet
Specifications
Input Voltage:
22~30Vdc
Output Voltage:
-1000Vdc
Output Max Current:
0.005 Amps
Max Power:
5 Watts
Features
DC/HVDC converter
22~30Vdc input range
Operating temperature range: -40~+70°C
Industrial safety certification: UL/IEC/EN 62368-1 UL/IEC/EN 61010-1
No minimum load required
Remote On/Off
5Vdc reference output
Fully regulated output
Adjustable output voltage
Protections: short circuit / overload / undervoltage-lockout / over temperature / input overvoltage / over programming
XP Power 3 year warranty
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$267.00
5
$258.99
10
$250.98
25
$240.30
100
$224.28
REQUEST a QUOTE for higher qty discounts
