TBL 090-124
24Vdc 3.75A, 24 Volt DIN Rail Power Supply NEC Class 2 UL508Manufacturer: TRACO Power
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
3.75 Amps
Max Power:
90 Watts
Features

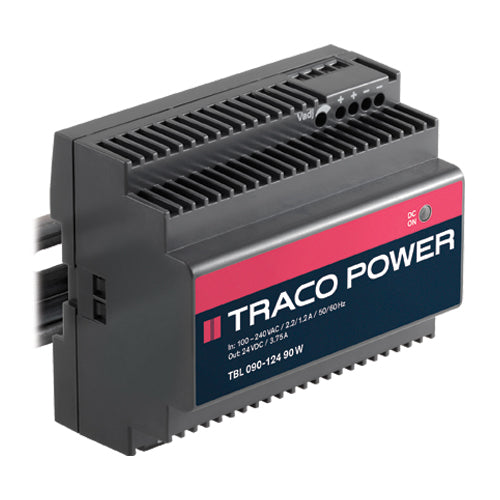

TRACO Power TBL 090-124 low profile DIN rail power supply
AC input range: 85~264Vac
Operating temperature range: -25~+70°C
Class II, UL60950-1, UL508
UL1310 NEC Class 2 (except TBL 090-112)
Adjustable output voltage
DC OK LED indicator
Casing: plastic (UL 94V-0 rated)
Standard Protections: over voltage / short circuit
TRACO Power 3 year warranty
