DRF-24V240W3GTA

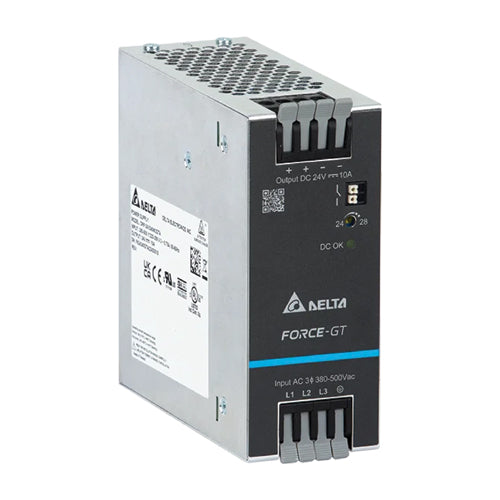

24Vdc, 10A, 3 Phase DIN Rail Power Supply, Spring Clamp Terminal, PFC, Conformal CoatedManufacturer: Delta
View Data Sheet
In Stock: 20 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$119.69
10
$117.54
25
$114.84
100
$113.31
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340-575 Vac Dual Phase / 320-575 Vac Three Phase
Output Voltage:
24Vdc
Output Max Current:
10 Amps
Max Power:
240 Watts
Features
3 phase DIN rail power supply
AC input range: 2-Phase 340~575Vac or 3-Phase 320~575Vac
Operating temperature range: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, UL 61010-1
SEMI F47
SELV
DC OK signal
Built-in PFC
LED indicator for DC OK
Adjustable output voltage
Constant current mode operation
Leakage current <3.5mA
Conformal coating on PCBAs to protect against common dust and pollutants
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
Delta 2 year warranty
