Power Worth Searching For

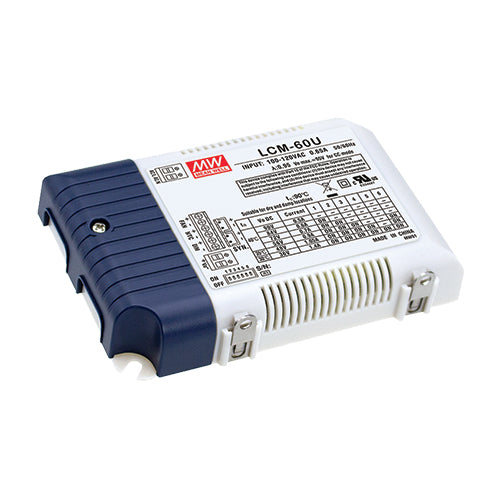

LCM-60U
Dimmable Multiple Stage Driver Selectable by DIP Switch 90-132 Vac Input RangeManufacturer: MEAN WELL
View Data Sheet
In Stock: 100 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~132Vac
Selectable Constant Current (default):
700 mA
DC Voltage Range (default):
2~90 Vdc
Max Power:
50 Watts
Features
AC input range: 90~132Vac
Case temperature range: -30~+90°C
Safety standard: UL8750
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dimming to off); auxiliary DC output; synchronization up to 10 units
Protections: short circuit / over voltage / over temperature
MEAN WELL 3 year warranty
LCM-60U
Dimmable Multiple Stage Driver Selectable by DIP Switch 90-132 Vac Input RangeManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~132Vac
Selectable Constant Current (default):
700 mA
DC Voltage Range (default):
2~90 Vdc
Max Power:
50 Watts
Features
AC input range: 90~132Vac
Case temperature range: -30~+90°C
Safety standard: UL8750
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dimming to off); auxiliary DC output; synchronization up to 10 units
Protections: short circuit / over voltage / over temperature
MEAN WELL 3 year warranty
In Stock: 100 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
