Power Worth Searching For

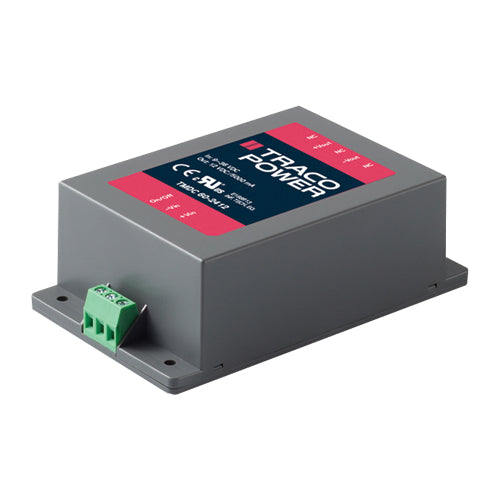

TMDC 60-4811
5.1Vdc 12A, DC-DC Converter Chassis Mount, Screw Terminal Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
5.1Vdc
Output Max Current:
12 Amps
Max Power:
60 Watts
Features
TRACO Power TMDC 60-4811 encapsulated DC/DC converter with screw terminals
Ultra wide 4:1 input voltage range
Operating temperature: -40~+85°C
Fully encapsulated low profile plastic case
Input filter to meet EN 55022, class A
High efficiency
No minimum load required
Power good LED indicator
Input polarity protection
Remote On/Off
Optional DIN-rail mount adapter
Protections: short circuit / over voltage
TRACO Power 3 year warranty
