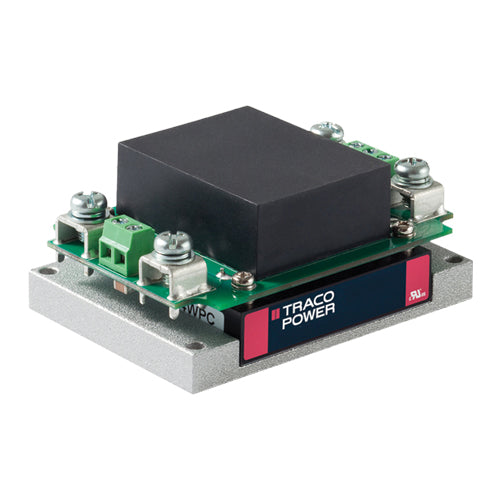

TEP 100-7218WIR-CMF
48Vdc 2.1A, DC/DC Converter Chassis Mount with EMI Filter Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
43~160Vdc
Output Voltage:
48Vdc
Output Max Current:
2.1 Amps
Max Power:
100.8 Watts
Features
TRACO Power TEP 100-7218WIR-CMF high performance compact & rugged package DC/DC converter
4:1 ultra-wide input range
Operating temperature: -40~+75°C
Ultra wide 4:1 input voltage range
No minimum load
Full load operation up to 60°C with convection cooling
Adjustable output voltage +10/-20%
Very high efficiency
Soft start
Input protection filter
Easy chassis mount
Remote On/Off input
Screw terminal adaptor available for easy connection
Reverse input voltage protection
Under voltage lock-out circuit
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
