Power Worth Searching For

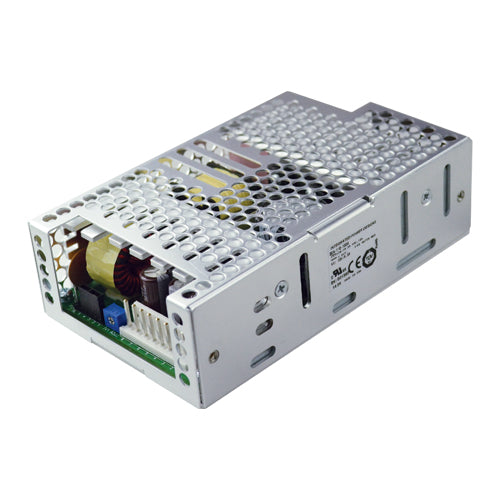

DC4-110-4005-CHCO
DC/DC Converter, Quad Output, Chassis & CoverManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$167.63
3
$162.63
10
$160.24
25
$152.14
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
36~72Vdc
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
110 Watts
Features
IPD DC4-110-4005-CHCO DC/DC converter with medical approvals
DC input range: 36~72Vdc (48Vdc)
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 3.12x5.25x1.48
Available in open frame or optional chassis without cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
DC4-110-4005-CHCO
DC/DC Converter, Quad Output, Chassis & CoverManufacturer: IPD
View Data Sheet
Specifications
Input Voltage:
36~72Vdc
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
-5Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
15Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-15Vdc
Output #4 Max Current:
2 Amps
Max Power:
110 Watts
Features
IPD DC4-110-4005-CHCO DC/DC converter with medical approvals
DC input range: 36~72Vdc (48Vdc)
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 3.12x5.25x1.48
Available in open frame or optional chassis without cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$167.63
3
$162.63
10
$160.24
25
$152.14
REQUEST a QUOTE for higher qty discounts
