Power Worth Searching For
DC4-110-2004-CHCO

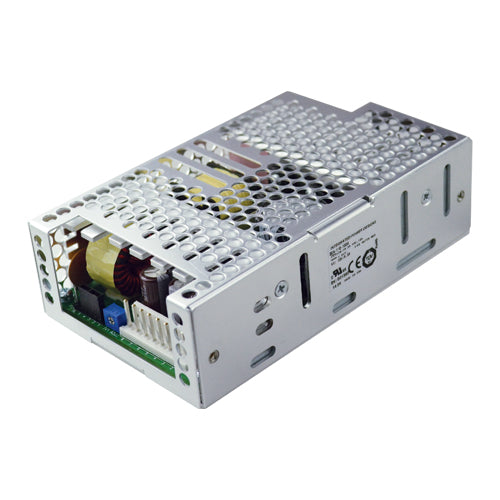

DC/DC Converter, Dual Output, Chassis & CoverManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$145.65
3
$141.30
10
$139.22
25
$135.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
36~72Vdc
Output Voltage #1:
12Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
-12Vdc
Output #2 Max Current:
4 Amps
Max Power:
110 Watts
Known Country of Origin:
USA
Features
IPD DC4-110-2004-CHCO dual output DC/DC converter with medical approvals
Power Factor Correction
Operating temperature: 0~+70°C
Small & compact PCB construction
EN 60950-1 ITE certification and EN 60601-1 medical certification
Integrated Power Designs 2 year warranty
