TEP 160-4810
DC/DC Converter Half Brick Package Wide 2:1 Input Range
Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
33~75Vdc
Output Voltage:
3.3Vdc
Output Max Current:
45 Amps
Max Power:
149 Watts
Known Country of Origin:
Not specified
Features

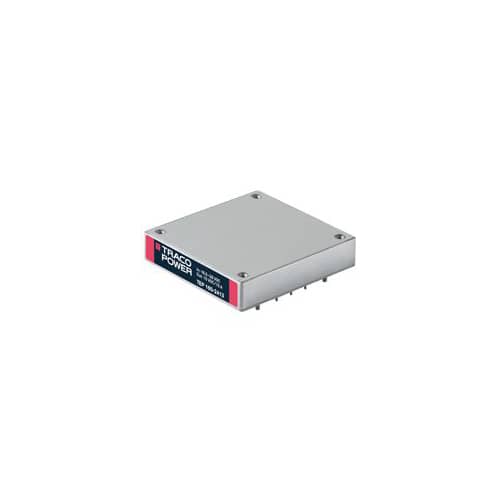

TRACO Power TEP 160-4810 half brick DC/DC converter
Wide 2:1 input voltage range
Operating temperature: -40~+75°C
No minimum load required
Adjustable output voltage +10/-20%
Sense line
High efficiency
Soft start
Remote On/Off input
Optional heat sink
Reverse input voltage protection
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
