Power Worth Searching For

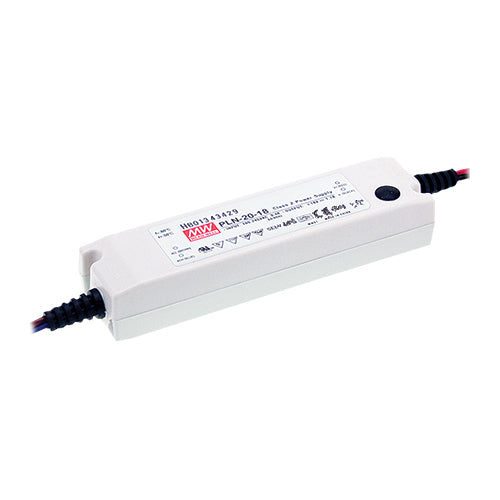

PLN-20-36
36V0.5A 36Vdc Power Supply IP64, Class 2 Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~277Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
0.55 Amps
Output Current (CC mode):
0.55 Amps
Constant Current Operating Range:
27~36Vdc
Max Power:
19 Watts
Features
AC input: 90~277Vac
Operating temperature: -30~+60°C
Class II power unit, no FG
Class 2 power unit, Pass LPS
Built-in constant current limiting circuit with adjustable OCP level
Built-in active PFC > 0.9 at operation of 75% of rated load or higher
High efficiency
Compact size
Fully isolated plastic case with IP64 rating
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 2 year warranty
PLN-20-36
36V0.5A 36Vdc Power Supply IP64, Class 2 Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~277Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
0.55 Amps
Output Current (CC mode):
0.55 Amps
Constant Current Operating Range:
27~36Vdc
Max Power:
19 Watts
Features
AC input: 90~277Vac
Operating temperature: -30~+60°C
Class II power unit, no FG
Class 2 power unit, Pass LPS
Built-in constant current limiting circuit with adjustable OCP level
Built-in active PFC > 0.9 at operation of 75% of rated load or higher
High efficiency
Compact size
Fully isolated plastic case with IP64 rating
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 2 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
