Power Worth Searching For

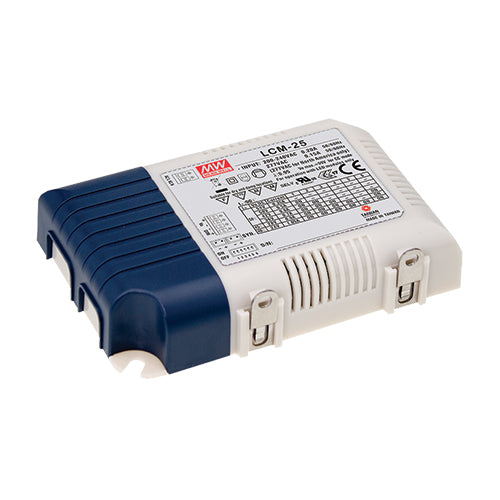

LCM-25
I/P 180~277Vac O/P 350~1050mA Dimmable Multiple Stage Driver Selectable by DIP Switch 180-277 Vac Input RangeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180-277Vac
Selectable Constant Current (default):
700 mA
DC Voltage Range (default):
6~54 Vdc
Max Power:
25.2 Watts
Features
AC input range: 180~277Vac
Case temperature range: -30~+85°C
Safety standard: UL8750
Plastic housing with class II design
Built-in active PFC function
Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units
Protections: short circuit / over temperature
MEAN WELL 3 year warranty
