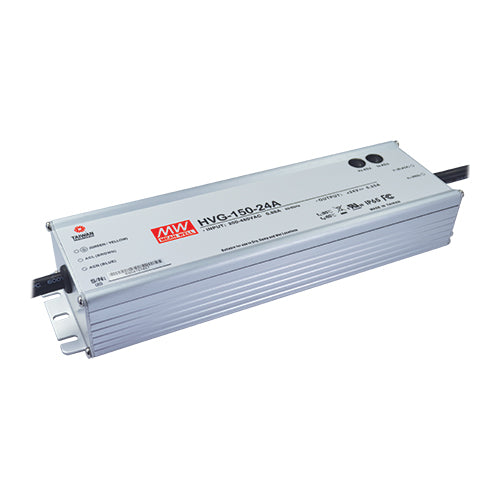

HVG-150-36A
I/P 180~528Vac O/P 36V 4.17A 36Vdc Driver, IP65 Wide Input Range: 180~528vac Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
In Stock: 24 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180~528Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
4.17 Amps
Output Current (CC mode):
4.17 Amps
Constant Current Operating Range:
19.8~36Vdc
Max Power:
150 Watts
Features
Wide range AC input: 180~528Vac
Working case temperature: -40~+85°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Constant current level adjustable through output dimming leads with 0~10VDC or 10V PWM sign or resistance dimmer
High efficiency
Built-in active PFC
Durable metal enclosure
Protections: short circuit, over temperature, over current, over voltage
Applications: LED street lighting, LED high bay lighting, LED office lighting and other indoor/outdoor lighting
MEAN WELL XX year warranty
HVG-150-36A
I/P 180~528Vac O/P 36V 4.17A 36Vdc Driver, IP65 Wide Input Range: 180~528vac Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
180~528Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
4.17 Amps
Output Current (CC mode):
4.17 Amps
Constant Current Operating Range:
19.8~36Vdc
Max Power:
150 Watts
Features
Wide range AC input: 180~528Vac
Working case temperature: -40~+85°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Constant current level adjustable through output dimming leads with 0~10VDC or 10V PWM sign or resistance dimmer
High efficiency
Built-in active PFC
Durable metal enclosure
Protections: short circuit, over temperature, over current, over voltage
Applications: LED street lighting, LED high bay lighting, LED office lighting and other indoor/outdoor lighting
MEAN WELL XX year warranty
