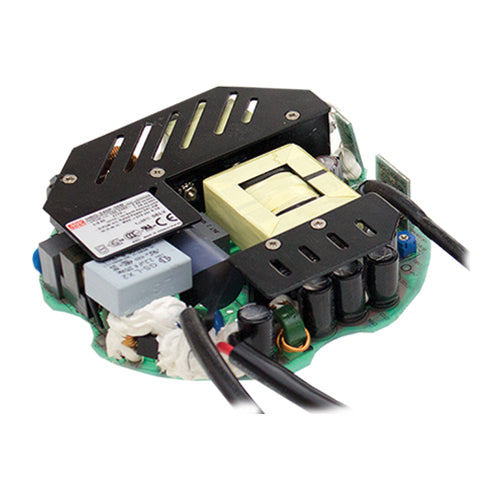

HBG-240P-36B
36Vdc 6.7A Dimmable LED Power Supply PCB Type, Circular ShapeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Constant Current:
6700mA
Constant Current Operating Range:
21.6~36Vdc
Max Power:
241 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+45°C
UL8750, SELV
Built-in active PFC function
3 in 1 dimming function via built-in potentiometer (1~10Vdc, 10V PWM signal and resistance)
Protections: over current / short circuit / over voltage / over temperature
Applications: The HBG LED power supply is easy to assemble and fit with the mechanical structure of highbay & lowbay lighting fixtures.
MEAN WELL 5 year warranty
