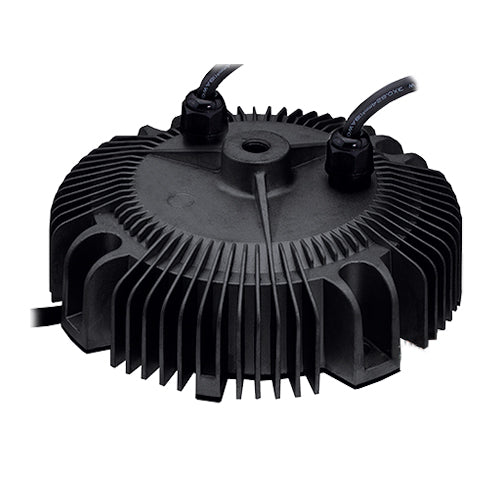

HBG-240-60AB
60Vdc 4.0A 60Vdc Dimmable LED Driver Circular Shape, IP65, PFC Adjustable, 3 in 1 DimmingManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
60Vdc
Output Max Current (CV mode):
4 Amps
Output Current (CC mode):
4 Amps
Constant Current Operating Range:
36~60Vdc
Max Power:
240 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+75°C
Safety approvals: UL8750
Built-in PFC
IP65 fully potted circular aluminum case
High efficiency
Constant current level can be adjusted through internal potentiometer
3 in 1 dimming function: 1-10Vdc dimmer, 10V PWM dimmer, or resistance dimmer
Withstands 5G vibration
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
