HBG-240-48B

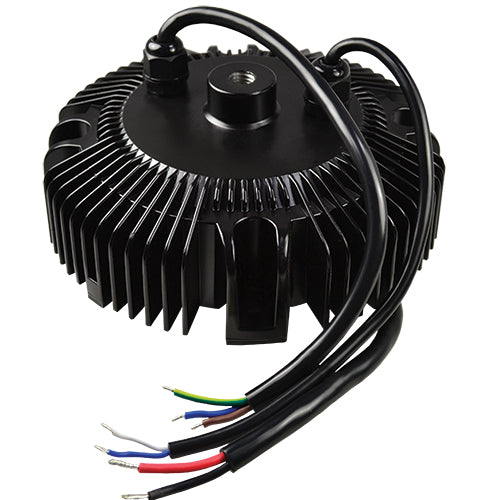

48Vdc 5.0A Dimmable LED Power Supply IP67, Circular Shape, PFCManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Constant Current:
5000mA
Constant Current Operating Range:
28.8~48Vdc
Max Power:
240 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+75°C
UL8750, SELV
Built-in active PFC function
IP67 fully potted circular aluminum case
Dimmable via output cable with 1~10V, PWM signal or resistance dimmers
Protections: short circuit / over current / over voltage / over temperature
Applications: The HBG LED power supply is easy to assemble and fit with the mechanical structure of highbay & lowbay lighting fixtures.
MEAN WELL 5 year warranty
