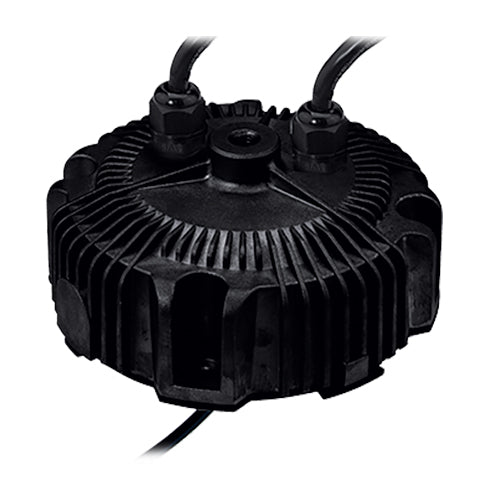

HBG-200-60B
I/P 90~305Vac O/P 36-60V / 3.3A Dimmable LED Power Supply Circular Shape, IP67, PFC 3 in 1 Dimming FunctionManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
60Vdc
Output Max Current (CV mode):
3.3 Amps
Output Current (CC mode):
3.3 Amps
Constant Current Operating Range:
36~60Vdc
Max Power:
198 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+85°C
Safety approval: UL 8750, SELV
Type HL for use in Class I, Division 2 hazardous (Classified) location
Built-in PFC
Withstand 5G anti-vibration
High efficiency
IP67 circular metal housing
Dimmable via output cable with 0~10V, PWM signal or resistance dimmers
Protections: short circuit / over current / over voltage / over temperature
Applications: LED high/low bay lighting, LED street lighting and indoor/outdoor lighting
MEAN WELL 5 year warranty
