HBG-160P-60A

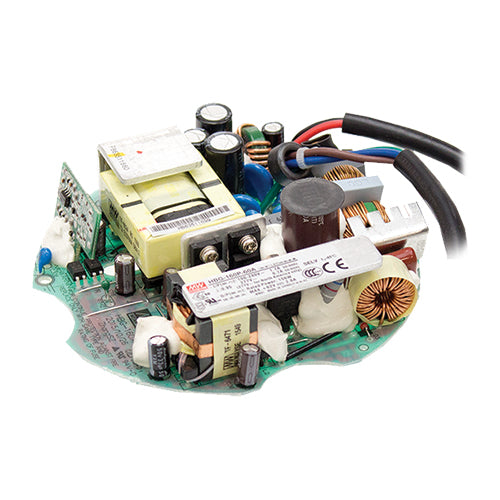

60Vdc 2.6A 60 Volt LED Power Supply PCB Type, Circular ShapeManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
60Vdc
Output Max Current (CV mode):
2.6 Amps
Output Current (CC mode):
2.6 Amps
Constant Current Operating Range:
36~60Vdc
Max Power:
156 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+45°C
UL8750, SELV
Built-in active PFC function
Io adjustable through built-in potentiometer
Protections: over current / over voltage / over temperature
Applications: The HBG LED power supply is easy to assemble and fit with the mechanical structure of highbay & lowbay lighting fixtures
MEAN WELL 5 year warranty
