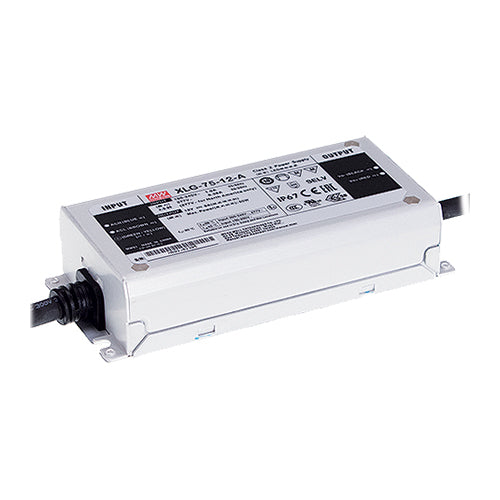

XLG-75-H-A
Constant Power LED Driver Adjustable Output Current IP67, Type HLManufacturer: MEAN WELL
View Data Sheet
In Stock: 41 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
100~305Vac
Constant Current Operating Range:
27~56Vdc
Adjustable Current Range:
1.3~2.1 Amps
Max Power:
75 Watts
Features
AC input range: 100~305Vac
Working case temperature: -40~+90°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
IP67, durable metal enclosure
Built-in PFC
Withstands 5G vibration
LVLE and Class 2 power unit
No load power consumption: <0.5W
Output current level adjustable through internal potentiometer
Surge protection: 4kV (line-line), 6kV (line-earth)
Protections: short circuit / over voltage / over temperature / over power
MEAN WELL 5 year warranty
XLG-75-H-A
Constant Power LED Driver Adjustable Output Current IP67, Type HLManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
100~305Vac
Constant Current Operating Range:
27~56Vdc
Adjustable Current Range:
1.3~2.1 Amps
Max Power:
75 Watts
Features
AC input range: 100~305Vac
Working case temperature: -40~+90°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
IP67, durable metal enclosure
Built-in PFC
Withstands 5G vibration
LVLE and Class 2 power unit
No load power consumption: <0.5W
Output current level adjustable through internal potentiometer
Surge protection: 4kV (line-line), 6kV (line-earth)
Protections: short circuit / over voltage / over temperature / over power
MEAN WELL 5 year warranty
