PLP-30-48

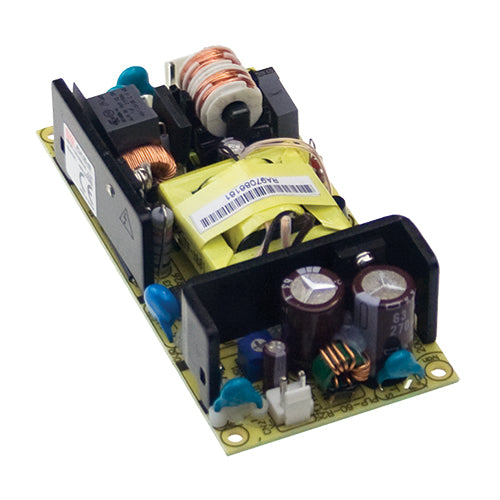

48V0.63A 48Vdc LED Power Supply Open Frame, Class 2Manufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage (CV mode):
48Vdc
Output Max Current (CV mode):
0.63 Amps
Output Current (CC mode):
0.63 Amps
Constant Current Operating Range:
36~48Vdc
Max Power:
30 Watts
Features
AC input: 90~264Vac
Operating temperature: -30~+70°C
UL8750 Class 2
Cooling by free air convection
Operates in constant voltage or constant current mode
Built-in active PFC function
Output current adjustment for constant current mode via potentiometer
Protections: short circuit / over current / over voltage
MEAN WELL 2 year warranty
