NPF-90D-36

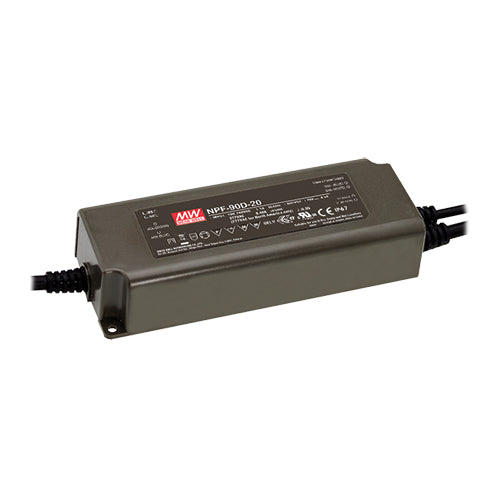

36Vdc 2.5A Dimmable LED Power Supply IP67, Class ll, Class 2, PFCManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Constant Current:
2500mA
Constant Current Operating Range:
21.6~36Vdc
Max Power:
90 Watts
Features
AC input range: 90~305Vac
Operating temperature range: -40~+70°C
Class 2 power unit
Class II
Built-in 3 in 1 dimming function: 0~10Vdc, PWM signal or resistance dimmers
Built-in active PFC function
No load power consumption <0.5W
IP67, plastic enclosure
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
