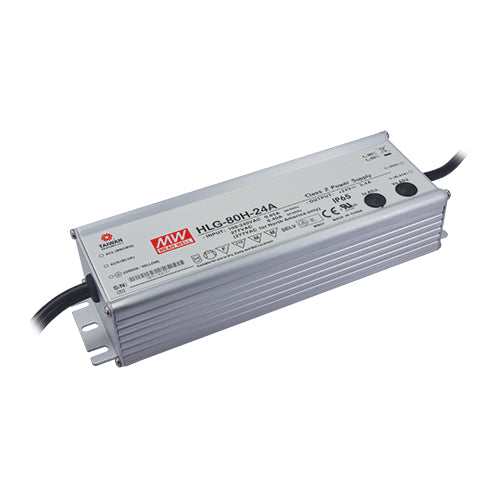

HLG-80H-54AB
54Vdc 1.5A 54Vdc Dimmable LED Driver Adjustable Current 3 in 1 Dimming, IP65, CC or CVManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
54Vdc
Output Max Current (CV mode):
1.5 Amps
Output Current (CC mode):
1.5 Amps
Constant Current Operating Range:
32.4~54Vdc
Max Power:
81 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+80°C
Safety approvals: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Meet 4kV surge immunity level (IEC 61000-4-5)
Class 2 power unit
Built-in PFC
IP65 durable aluminium enclosure
Withstands 5G vibration
Output constant current level can be adjusted through internal potentiometers
3 in 1 dimming function: 1-10Vdc dimmer, 10V PWM dimmer, or resistance dimmer
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 7 year warranty
HLG-80H-54AB
54Vdc 1.5A 54Vdc Dimmable LED Driver Adjustable Current 3 in 1 Dimming, IP65, CC or CVManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
54Vdc
Output Max Current (CV mode):
1.5 Amps
Output Current (CC mode):
1.5 Amps
Constant Current Operating Range:
32.4~54Vdc
Max Power:
81 Watts
Features
AC input range: 90~305Vac
Operating case temperature: -40~+80°C
Safety approvals: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Meet 4kV surge immunity level (IEC 61000-4-5)
Class 2 power unit
Built-in PFC
IP65 durable aluminium enclosure
Withstands 5G vibration
Output constant current level can be adjusted through internal potentiometers
3 in 1 dimming function: 1-10Vdc dimmer, 10V PWM dimmer, or resistance dimmer
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 7 year warranty
