TAAM700-15C

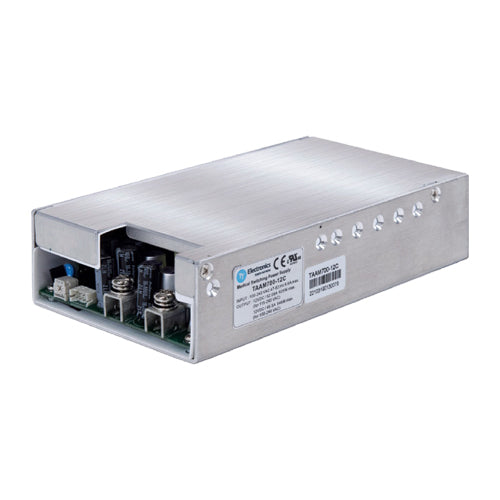

28Vdc Medical Power Supply 28V 25A 700WManufacturer: TT Electronics
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
28Vdc
Output Max Current:
25 Amps
Max Power:
700 Watts
Features
TT Electronics TAAM700-15C chassis medical power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Medical safety certification: IEC/EN 60601-1
BF rated
Built-in PFC
High power density 17.8W/in³
Built-in remote On/Off
Remote sense function
DC OK signal
Parallel function
Operation up to 5000m altitude
Protections: overvoltage / overcurrent / over temperature / short circuit / over power
TT Electronics 1 year warranty
