Power Worth Searching For
RT-125C

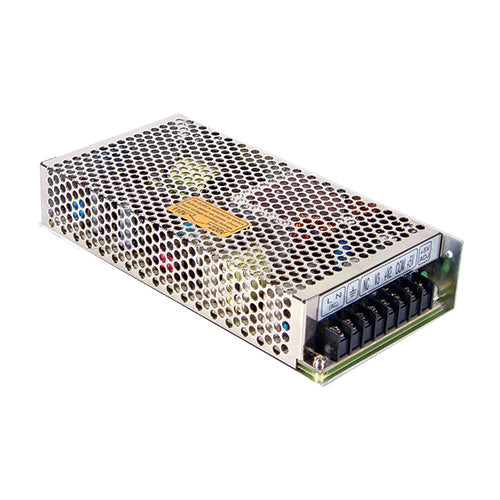

5V 10A +15V 4.5A -15V 1A, Triple Output Power Supply Enclosed ITE Power Supply G3 Series, 125 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
115/230Vac User Selectable
Output Voltage #1:
5Vdc
Output #1 Max Current:
15 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
1 Amps
Max Power:
132 Watts
Features
AC input range: 115/230Vac (select by switch)
Operating temperature: -25~+70°C
Safety standard: UL62368-1
High efficiency
Withstand 300vac surge input for 5 seconds
Withstand 5G vibration test
LED indicator for power on
High reliability: 105°C long life electrolytic capacitors - suitable for critical applications
Standard Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
RT-125C
5V 10A +15V 4.5A -15V 1A, Triple Output Power Supply Enclosed ITE Power Supply G3 Series, 125 WattsManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
115/230Vac User Selectable
Output Voltage #1:
5Vdc
Output #1 Max Current:
15 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
6 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
1 Amps
Max Power:
132 Watts
Features
AC input range: 115/230Vac (select by switch)
Operating temperature: -25~+70°C
Safety standard: UL62368-1
High efficiency
Withstand 300vac surge input for 5 seconds
Withstand 5G vibration test
LED indicator for power on
High reliability: 105°C long life electrolytic capacitors - suitable for critical applications
Standard Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
