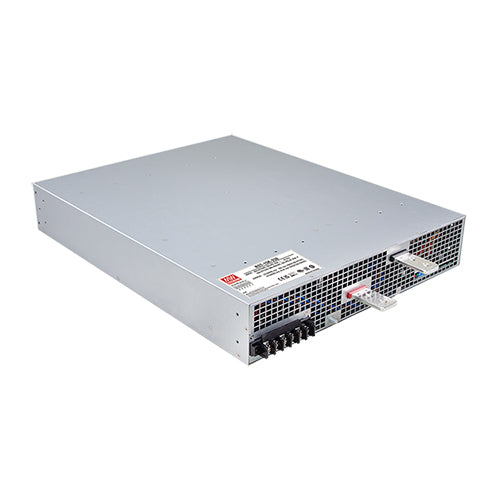

RST-15K-115
115Vdc 130A, 15,000W Power Supply High Voltage, Air Cooled 115V 130A, 15kWManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$3,800.00
5
$3,620.00
10
$3,460.00
20
$3,360.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
196~305Vac Three Phase
Output Voltage:
115Vdc
Output Max Current:
130 Amps
Max Power:
14950 Watts
Features
AC input range: 3 Phase 3-wire or 3 Phase 4-wire Y 196~305Vac
Operating temperature range: -30~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Built-in active PFC
Current sharing up to 2 RST-15K units
1+1 parallel operation (up to 2 units can be connected in parallel)
Forced air cooling by four built-in DC fans
Built-in remote On/Off
DC OK signal
High efficiency
Built-in 12V/0.1A auxiliary output - Only for Remote On/Off control (Auxiliary voltage output is not controlled by the Remote On/Off function)
Output voltage can be trimmed between 1~120% of the rated output voltage using an external voltage
Output constant current can be adjusted between 20~100% of the rated output current using an external voltage
Alarm signal output via relay contact
Protections: short circuit / overload / overvoltage / over temperature / fan failure
MEAN WELL 5 year warranty
