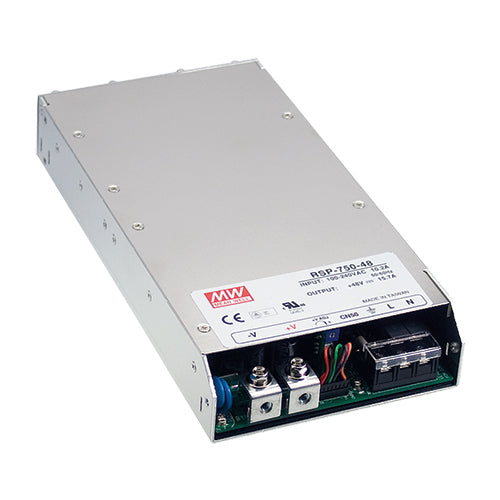

RSP-750-48

48Vdc 15.7A, 48Volts PFC Power Supply PFC, Low Profile 48 Volts 15.7 Amps 750 Watts, 750 Watts

Manufacturer: MEAN WELL

View Data Sheet

In Stock: 283 can ship immediately

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$186.20
5
$177.40
10
$169.50
20
$164.60

Specifications

Input Voltage:

90~264Vac

Output Voltage:

48Vdc

Output Max Current:

15.7 Amps

Max Power:

753 Watts

Features

AC input range: 90~264Vac

Operating temperature: -30~+70°C

Safety approvals: UL 62368-1 & TUV EN 62368-1

Built-in 12V auxiliary power

Forced air cooling via built-in DC fan with fan speed control

Built-in remote On/Off control, DC OK signal and remote sense function

Output voltage can be trimmed via an external DC control signal 40~110% of the rated output voltage

Output current can be trimmed via an external DC control signal 40~110% of the rated current

Protections: over load (constant current limiting) / short circuit / over voltage / over temperature / fan alarm

MEAN WELL 5 year warranty

MEAN WELL RSP-750-48

RSP-750-48

48Vdc 15.7A, 48Volts PFC Power Supply PFC, Low Profile 48 Volts 15.7 Amps 750 Watts, 750 Watts

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

90~264Vac

Output Voltage:

48Vdc

Output Max Current:

15.7 Amps

Max Power:

753 Watts

Features

AC input range: 90~264Vac

Operating temperature: -30~+70°C

Safety approvals: UL 62368-1 & TUV EN 62368-1

Built-in 12V auxiliary power

Forced air cooling via built-in DC fan with fan speed control

Built-in remote On/Off control, DC OK signal and remote sense function

Output voltage can be trimmed via an external DC control signal 40~110% of the rated output voltage

Output current can be trimmed via an external DC control signal 40~110% of the rated current

Protections: over load (constant current limiting) / short circuit / over voltage / over temperature / fan alarm

MEAN WELL 5 year warranty

In Stock: 283 can ship immediately

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$186.20
5
$177.40
10
$169.50
20
$164.60
