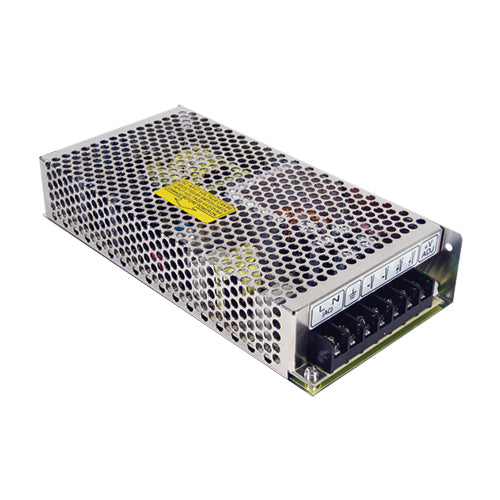

RS-150-24

24Vdc 6.5A 24Vdc Power Supply Enclosed Power Supply 24V 6.5A

Manufacturer: MEAN WELL

View Data Sheet

In Stock: 150 can ship immediately

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$29.56
5
$28.06
10
$26.91
20
$26.11

Specifications

Input Voltage:

115/230Vac User Selectable

Output Voltage:

24Vdc

Output Max Current:

6.5 Amps

Max Power:

156 Watts

Features

AC input: 88~132Vac / 176~264Vac selectable by switch

Operating temperature: -25~+70°C (note derating curve)

Safety standard: UL62368-1

Dimensions: 199mm x 98mm x 38mm

Withstand 300Vac surge input for 5 seconds

Withstand 5G vibration test

LED indicator for power on

High reliability: 105°C long life electrolytic capacitors

Standard protections: short circuit / over load/ over voltage

MEAN WELL 3 year warranty

MEAN WELL RS-150-24

RS-150-24

24Vdc 6.5A 24Vdc Power Supply Enclosed Power Supply 24V 6.5A

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

115/230Vac User Selectable

Output Voltage:

24Vdc

Output Max Current:

6.5 Amps

Max Power:

156 Watts

Features

AC input: 88~132Vac / 176~264Vac selectable by switch

Operating temperature: -25~+70°C (note derating curve)

Safety standard: UL62368-1

Dimensions: 199mm x 98mm x 38mm

Withstand 300Vac surge input for 5 seconds

Withstand 5G vibration test

LED indicator for power on

High reliability: 105°C long life electrolytic capacitors

Standard protections: short circuit / over load/ over voltage

MEAN WELL 3 year warranty
