Power Worth Searching For

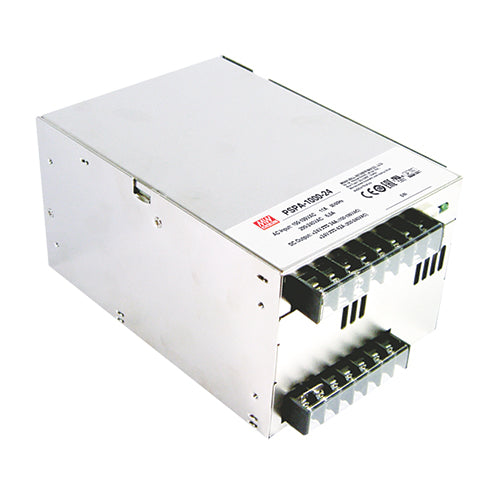

PSPA-1000-15
15Vdc 64A, 15Vdc PFC Power Supply Parallel Function (3+1) 15V 64Amps, 1000 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$201.40
5
$191.90
10
$183.40
20
$178.10
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
15Vdc
Output Max Current:
64 Amps
Max Power:
960 Watts
Features
AC input range: 90~264Vac
Operating temperature range: -20~+70°C
Safety approvals: UL 62368-1 & TUV EN62368-1
Current sharing capability, operate in parallel, (3+1), up to 4 units
Built-in DC OK signal, remote On/Off and remote sense function
Built-in active PFC
High efficiency
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
