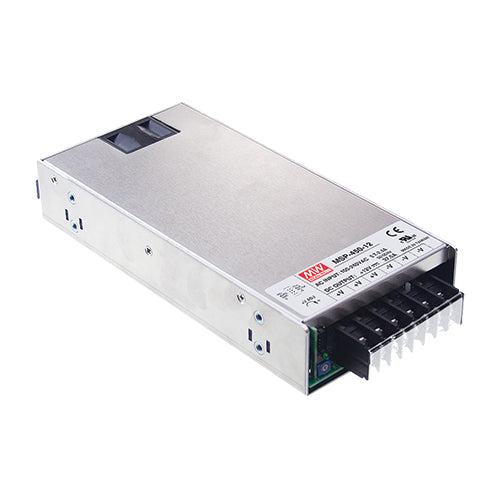

MSP-450-36

36Vdc 12.5A Medical Power Supply

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$166.30
5
$158.40
10
$151.40
20
$147.00

Specifications

Input Voltage:

85~264Vac

Output Voltage:

36Vdc

Output Max Current:

12.5 Amps

Max Power:

450 Watts

Features

Universal AC input: 85~264Vac

Operating temperature range: -40~+70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOOP (means of operator protection)

Built-in constant current limiting circuit

Withstand 300Vac surge for 5 seconds

Low leakage current <300µA

Low no load power consumption <0.6W

Cooling by built-in cooling fan On/Off control

Built-in remote On/Off control

5V/0.3A standby output

Built-in remote sense function

DC OK signal

Protections: short circuit / over load / over voltage / over temperature

Suitable applications include healthcare equipment requiring a high performance medical power supply.

MEAN WELL 5 year warranty

MEAN WELL MSP-450-36

MSP-450-36

36Vdc 12.5A Medical Power Supply

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

85~264Vac

Output Voltage:

36Vdc

Output Max Current:

12.5 Amps

Max Power:

450 Watts

Features

Universal AC input: 85~264Vac

Operating temperature range: -40~+70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOOP (means of operator protection)

Built-in constant current limiting circuit

Withstand 300Vac surge for 5 seconds

Low leakage current <300µA

Low no load power consumption <0.6W

Cooling by built-in cooling fan On/Off control

Built-in remote On/Off control

5V/0.3A standby output

Built-in remote sense function

DC OK signal

Protections: short circuit / over load / over voltage / over temperature

Suitable applications include healthcare equipment requiring a high performance medical power supply.

MEAN WELL 5 year warranty

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

Quantity
Unit Price
1
$166.30
5
$158.40
10
$151.40
20
$147.00
