Power Worth Searching For

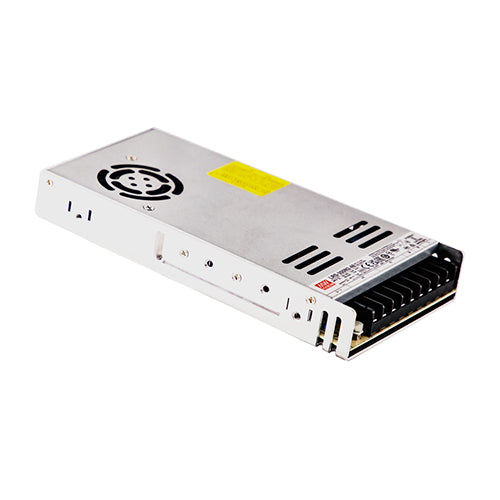

LRS-350N2-36
36Vdc 9.7A, Power Supply, Low Profile, 200% Peak PowerManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
110/220Vac Selectable
Output Voltage:
36Vdc
Output Max Current:
9.7 Amps
Max Power:
349.2 Watts
Features
1U low profile, enclosed type AC/DC power supply
AC input range: 90~132Vac & 180~264Vac by switch
Operating temperature range: -25~+70°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Peak power up to 200%
Withstand 300Vac surge input for 5 seconds
No load power consumption: <1 Watt
Built-in temperature controlled fan
Withstand 5G vibration
LED indicator for power On
Overvoltage category III
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
LRS-350N2-36
36Vdc 9.7A, Power Supply, Low Profile, 200% Peak PowerManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
110/220Vac Selectable
Output Voltage:
36Vdc
Output Max Current:
9.7 Amps
Max Power:
349.2 Watts
Features
1U low profile, enclosed type AC/DC power supply
AC input range: 90~132Vac & 180~264Vac by switch
Operating temperature range: -25~+70°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Peak power up to 200%
Withstand 300Vac surge input for 5 seconds
No load power consumption: <1 Watt
Built-in temperature controlled fan
Withstand 5G vibration
LED indicator for power On
Overvoltage category III
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
