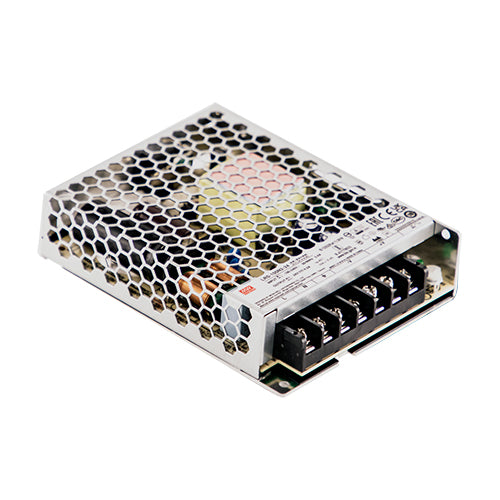

LRS-100N2-24
24Vdc 4.2A, 24V Enclosed Type Power Supply, Low Profile, 200% Peak PowerManufacturer: MEAN WELL
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
4.2 Amps
Max Power:
100.8 Watts
Features
1U low profile, enclosed type AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: TUV / EN 62368-1, UL 62368-1
Peak power up to 200%
Withstand 300Vac surge input for 5 seconds
No load power consumption: <0.5 Watts
Convection cooled
Withstand 5G vibration
LED indicator for power On
Overvoltage category III
Protections: short circuit / overload / over voltage
MEAN WELL 3 year warranty
LRS-100N2-24
24Vdc 4.2A, 24V Enclosed Type Power Supply, Low Profile, 200% Peak PowerManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
4.2 Amps
Max Power:
100.8 Watts
Features
1U low profile, enclosed type AC/DC power supply
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Industrial safety certification: TUV / EN 62368-1, UL 62368-1
Peak power up to 200%
Withstand 300Vac surge input for 5 seconds
No load power consumption: <0.5 Watts
Convection cooled
Withstand 5G vibration
LED indicator for power On
Overvoltage category III
Protections: short circuit / overload / over voltage
MEAN WELL 3 year warranty
