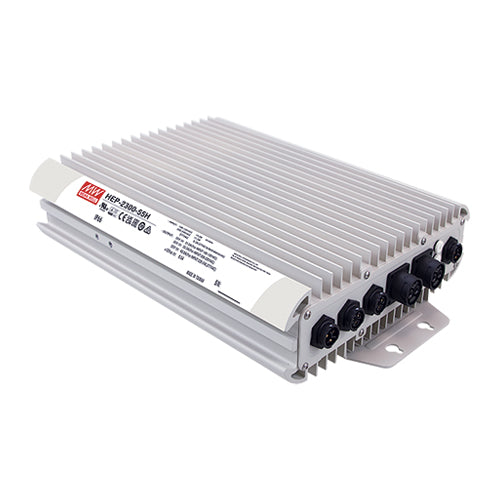

HEP-2300-55
55Vdc 41.8A 55 Volt, 41.8A, 2300W, Input: 90-305Vac, Harsh Environment Power Supply, Terminal BlockManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$855.00
5
$814.50
10
$778.50
20
$756.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~305Vac
Output Voltage:
55Vdc
Output Max Current:
41.8 Amps
Max Power:
2300 Watts
Features
2,300 watt enclosed type, harsh environment AC/DC power supply
AC input range: 90~305Vac
Operating temperature range: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Built-in PFC
Convection cooled
Built-in remote On/Off
Built-in CANBus with optional PMBus
DC OK signal
Charger function for lead-acid and Li-ion batteries
Withstands 10G vibration
LED indicator for power On
Terminal block type
Built-in 12V/0.5A auxiliary output - Only for Remote On/Off control
Protections: overload / overvoltage / over temperature
MEAN WELL 6 year warranty
