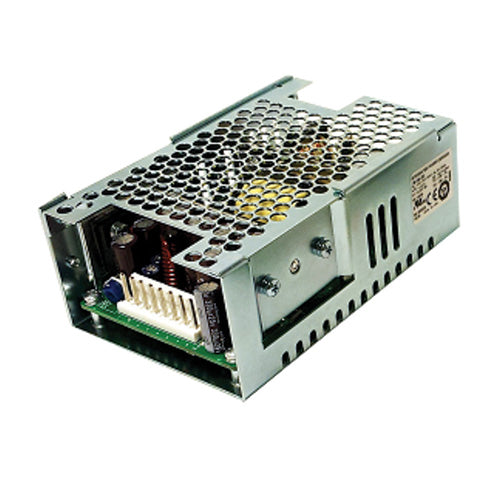

SRP-40A-3001-CHCO
Triple Output Power Supply, Chassis & Cover ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
5 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
2 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
0.7 Amps
Max Power:
40 Watts
Features
IPD SRP-40A-3001-CHCO enclosed power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
EN 60950-1 ITE certification and EN 60601-1 medical certification
Small compact size, open frame dimensions: 2.5x4.2x1.2
Available in open frame and chassis/cover
Protections: over voltage / over power / over current
Integrated Power Designs 2 year warranty
