REL-110-3001-CH
Triple Output Power Supply , Chassis , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$151.26
3
$146.75
10
$144.59
25
$136.91
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
10 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
3 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
3 Amps
Max Power:
110 Watts
Features

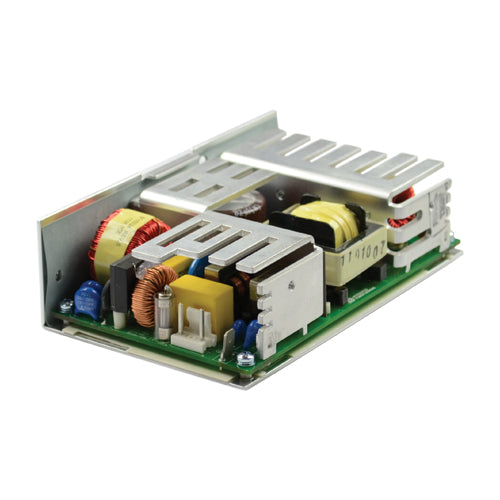

IPD REL-110-3001-CH medical power supply with chassis
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact dimensions: 3.12x5.25x1.48
Available in open frame and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
