NXT-400M-2002-FN

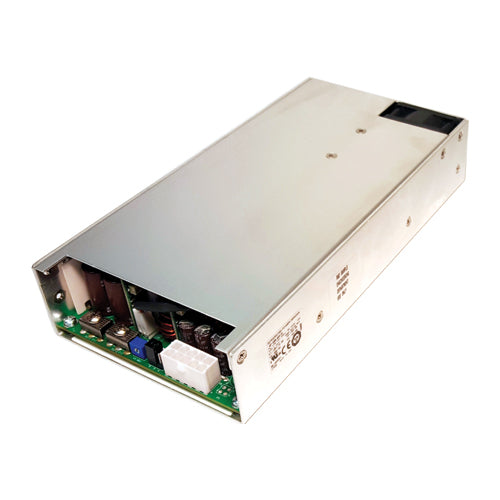

Dual Output Power Supply , Medical Power Supply , Enclosed with Rear FanManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$375.85
3
$364.63
10
$359.26
25
$329.28
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
40 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
10 Amps
Max Power:
400 Watts
Features
IPD NXT-400M-2002-FN multiple output enclosed medical power supply
AC input range: 85~264Vac
Operating temperature range: -20~+70°C
Medical safety certification: IEC/EN 60601-1
Medical safety certification: Meets EMC emission immunity to IEC 60601-1-2 4th edition
2xMOPP
Industrial safety certification: IEC/EN 62368-1
MIL-STD-810G
Built-in PFC
Built-in fan
Built-in remote On/Off
Built-in 5V/2A standby output
Shock & vibration proof
Low earth leakage current <300µA
Adjustable output voltage
Remote sense function
Low profile fits 1U applications, Compact size: 8.4x4.15x1.61
Protections: overvoltage / overload / over temperature
Integrated Power Designs 3 year warranty
