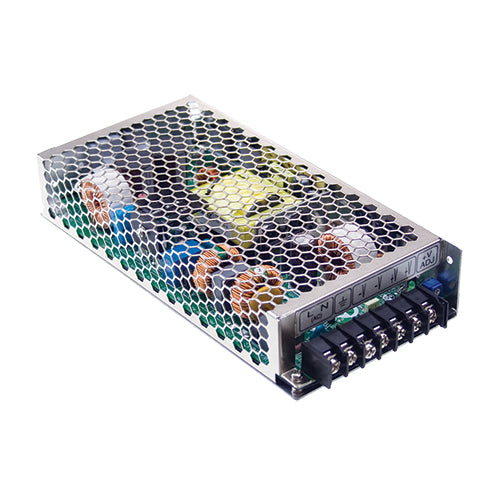

MSP-200-24

24Vdc 8.4A Medical Power Supply

Manufacturer: MEAN WELL

View Data Sheet

In Stock: 29 can ship immediately

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$100.51
5
$95.80
10
$91.54
20
$88.90

Specifications

Input Voltage:

85~264Vac

Output Voltage:

24Vdc

Output Max Current:

8.4 Amps

Max Power:

201 Watts

Features

Universal AC input: 85~264Vac

Operating temperature range: -40~+70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOOP (means of operator protection)

Built-in constant current limiting circuit

Withstand 300Vac surge for 5 seconds

Low leakage current <300µA

Low no load power consumption <0.5W

Cooling by free air convection

Built-in remote On/Off control

5V/0.3A standby output

Built-in remote sense function

Protections: short circuit / over load / over voltage / over temperature

Suitable applications include healthcare equipment requiring a high performance medical power supply.

MEAN WELL 5 year warranty

MEAN WELL MSP-200-24

MSP-200-24

24Vdc 8.4A Medical Power Supply

Manufacturer: MEAN WELL

View Data Sheet

Specifications

Input Voltage:

85~264Vac

Output Voltage:

24Vdc

Output Max Current:

8.4 Amps

Max Power:

201 Watts

Features

Universal AC input: 85~264Vac

Operating temperature range: -40~+70°C

Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1

2xMOOP (means of operator protection)

Built-in constant current limiting circuit

Withstand 300Vac surge for 5 seconds

Low leakage current <300µA

Low no load power consumption <0.5W

Cooling by free air convection

Built-in remote On/Off control

5V/0.3A standby output

Built-in remote sense function

Protections: short circuit / over load / over voltage / over temperature

Suitable applications include healthcare equipment requiring a high performance medical power supply.

MEAN WELL 5 year warranty
