PFA300-18A

48Vdc Open Frame Power Supply

Manufacturer: TT Electronics

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$128.20
10
$124.37

Specifications

Input Voltage:

90~264Vac

Output Voltage:

48Vdc

Output Max Current:

6.25 Amps

Output Peak Current:

8.33 Amps

Max Power:

300 Watts

Features

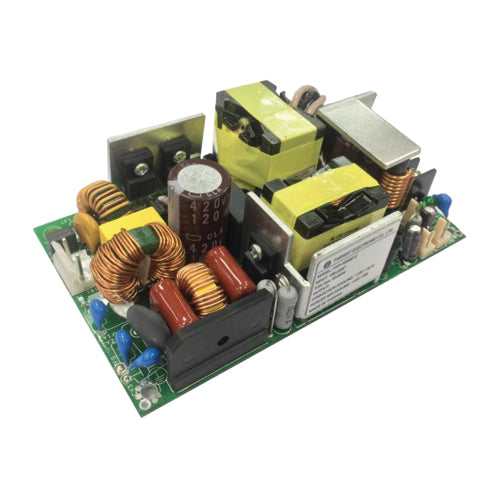

Power Partners PFA300-18A compact 3x5 inch open frame ITE power supply

AC input range: 90~264Vac

Operating temperature range: -30~+85°C (with derating)

Safety approvals: cUL/UL 60950-1 2nd Amdt.

400W peak power capability

200W natural convection cooled at +50°C

<0.3W standby power

Built-in 12V fan output and remote sense

Protections: short circuit / over load / over voltage / over temperature

Optional u-channel and enclosed (w/fan) versions available

TT Electronics 1 year warranty
