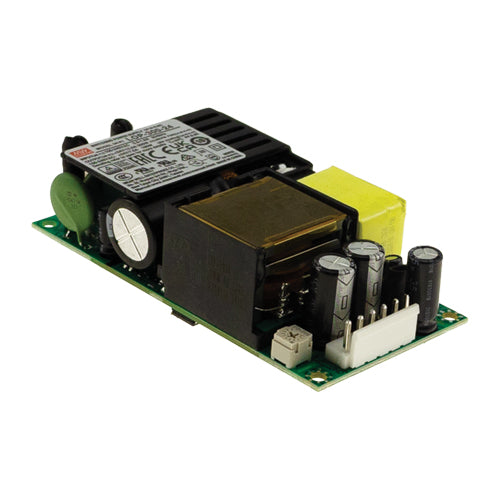

LOP-300-36

36Vdc 5A Power Supply, 2"x4" Open Frame

Manufacturer: MEAN WELL

View Data Sheet

Availability: Contact Us

i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.

Lead time for quantities greater than shown, contact us

*The import tariff is included in the unit price

Quantity
Unit Price
1
$48.76
5
$46.46
10
$44.39
20
$43.13

Specifications

Input Voltage:

80~264Vac

Output Voltage:

36Vdc

Output Max Current:

8.3 Amps

Max Power:

299.8 Watts

Features

2x4 low profile open frame power supply

AC input range: 80~264Vac

Operating temperature range: -40~+80°C

Industrial safety certification: IEC/EN 62368-1, UL 62368-1

Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1

2xMOPP

BF rated

Built-in PFC

Protection Class I & II

Overvoltage Category III

150% Peak Power @3sec

High Efficiency

Built-in 12V/0.5A fan supply

Operation up to 5000m altitude

Low standby power <0.5W

Low touch leakage current <70µA

Output power = 180W convection cooled, 300W with 10.98CFM forced air cooling

Protections: short circuit / overload / overvoltage / over temperature

MEAN WELL 3 year warranty
