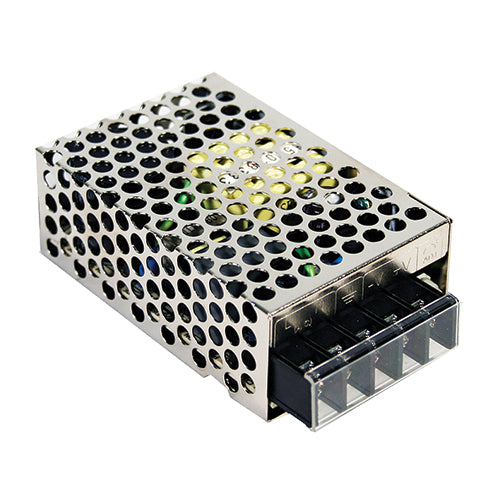

RS-25-24
24Vdc 1.1A 24Vdc Power Supply Enclosed Power Supply 24V 1.1AManufacturer: MEAN WELL
View Data Sheet
In Stock: 191 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
88~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.1 Amps
Max Power:
26 Watts
Features
AC input range: 88~264Vac
Operating temperature: -20~+70°C (note derating curve)
Safety standard: UL62368-1
Dimensions: 79mm x 51mm x 28mm
Withstand 300Vac surge input for 5 seconds
Withstand 5G vibration test
LED indicator for power on
Low no load power consumption: <0.5W
High reliability: 105°C long life electrolytic capacitors
Standard protections: short circuit / overload / overvoltage / overtemperature
MEAN WELL 3 year warranty
