TRC-24V100WDIM

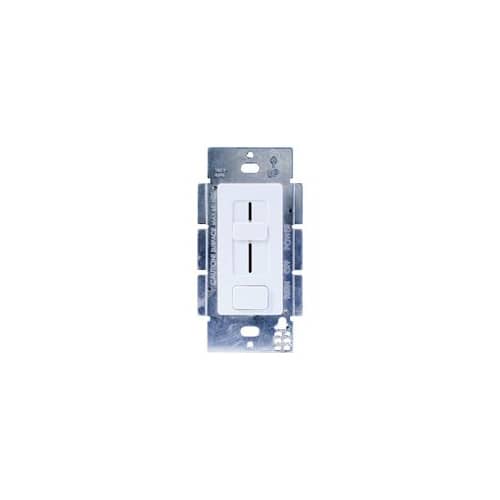

LED Driver + Built-In Dimmer 24Vdc 100WManufacturer: TRC Electronics
View Data Sheet
In Stock: 260 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
108~132Vac
Output Voltage:
24Vdc
Output Max Current:
4.16 Amps
Max Power:
100 Watts
Features
LED driver and wall dimmer switch in one unit
AC input range: 108~132Vac
Operating temperature range: 0~+40°C
Safety certification: UL listed
NEC class 2 output
Simplifies LED installation by eliminating compatability issues between driver and dimmer
Fits in a standard recessed electrical box
100% to 5% smooth dimming
Single pole preset dimmer with On/Off push switch
Adjustable voltage output dial to address voltage drop
Includes voltage barrier partition to install high and low voltage circuit
Power failure memory: If power is interrupted, TRCDIM will return to setting prior to interruption
Included face plates: glossy white, glossy light almond, and glossy dark brown (trim plates are not included nor sold by TRC)
Compatible with solid color 24Vdc tape light and fixtures
5 year warranty
