REL-70-1006

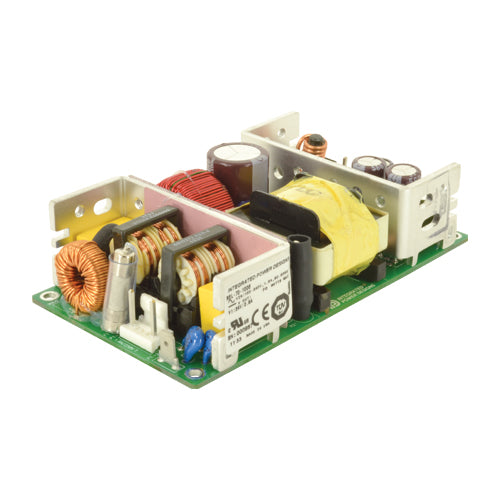

24Vdc Power Supply , Open Frame, 2.5"x4.5" , ITE & Medical CertificationManufacturer: IPD
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
2.9 Amps
Max Power:
69 Watts
Features
IPD REL-70-1006 open frame power supply with medical approvals
AC input range: 85~264Vac
Operating temperature: 0~+70°C
2 x MOPP - Means of Patient Protection (primary to secondary)
EN 60950-1 ITE certification and EN 60601-1 medical certification
PFC
Small compact size, open frame dimensions: 2.5x4.5x1.2
Available with optional chassis and chassis/cover
Protections: over voltage / over power
Integrated Power Designs 2 year warranty
