MDS-250APB24 AA

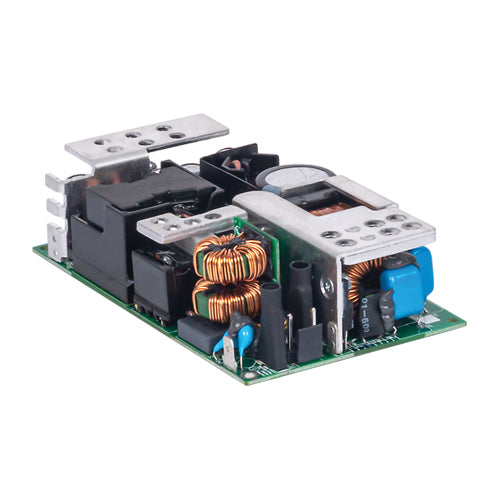

24Vdc 10.41A Medical Power Supply Open Frame 24 Volts 10.41 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$92.75
10
$91.32
25
$90.63
100
$87.29
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
10.41 Amps
Max Power:
250 Watts
Features
3x5 inches open frame medical power supply
AC input range: 90~264Vac
Operating temperature range: -10~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF applications
Built-in PFC
Built-in 5V/0.5A standby output
Built-in remote On/Off
Built-in remote sense
Power good signal
Operation up to 5000m altitude
Protections: overload / overvoltage / over temperature / short circuit
Industrial safety certification: IEC/EN 62368-1, UL 62368-1, IEC 60950-2
DELTA Power 3 year warranty
