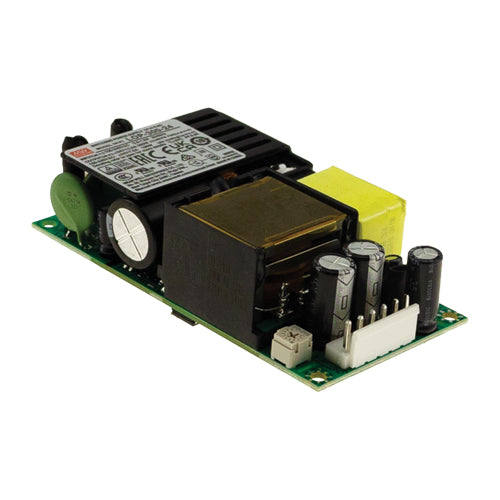

LOP-300-18
18Vdc 10A Power Supply, 2"x4" Open FrameManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
18Vdc
Output Max Current:
16.7 Amps
Max Power:
300.6 Watts
Features
2x4 low profile open frame power supply
AC input range: 80~264Vac
Operating temperature range: -40~+80°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
BF rated
Built-in PFC
Protection Class I & II
Overvoltage Category III
150% Peak Power @3sec
High Efficiency
Built-in 12V/0.5A fan supply
Operation up to 5000m altitude
Low standby power <0.5W
Low touch leakage current <70µA
Output power = 180W convection cooled, 300W with 10.98CFM forced air cooling
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 3 year warranty
