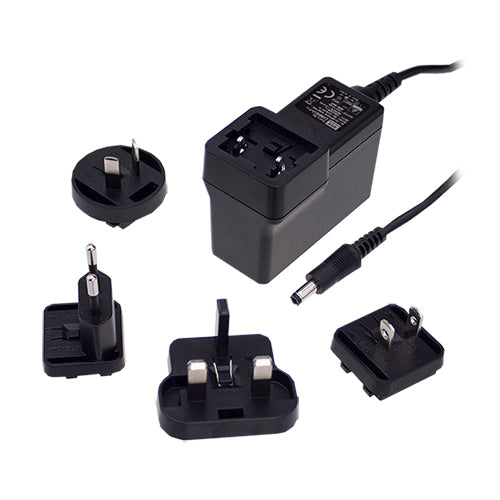

GEM60I12-P1J
12V @4.5A Medical Wall Plug-In Interchangeable AC Plugs Efficiency Level VIManufacturer: MEAN WELL
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
4.5 Amps
Max Power:
54 Watts
Features
AC input range: 80~264Vac
Operating temperature range: -30~+70°C (with derating)
Medical safety approvals: ANSI/AAMI ES60601-1, TUV EN60601-1 & EN/ES 60601-1-11
2xMOPP
Low leakage current <100µA
Suitable for BF applications
Interchangeable AC plugs (sold separately)
Class II power unit
Energy efficiency Level VI
No load power consumption: <0.15W
DC output connector: 2.1 x 5.5 x 11mm, center positive
Optional DC plug types available upon request
Protections: short circuit / over voltage / over load
MEAN WELL 3 year warranty
GEM60I12-P1J
12V @4.5A Medical Wall Plug-In Interchangeable AC Plugs Efficiency Level VIManufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
4.5 Amps
Max Power:
54 Watts
Features
AC input range: 80~264Vac
Operating temperature range: -30~+70°C (with derating)
Medical safety approvals: ANSI/AAMI ES60601-1, TUV EN60601-1 & EN/ES 60601-1-11
2xMOPP
Low leakage current <100µA
Suitable for BF applications
Interchangeable AC plugs (sold separately)
Class II power unit
Energy efficiency Level VI
No load power consumption: <0.15W
DC output connector: 2.1 x 5.5 x 11mm, center positive
Optional DC plug types available upon request
Protections: short circuit / over voltage / over load
MEAN WELL 3 year warranty
