Power Worth Searching For
THL 20-2411WI
5Vdc 4A, DC-DC Converter 1x1 Package Wide 4:1 Input Voltage RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
5Vdc
Output Max Current:
4 Amps
Max Power:
20 Watts
Features

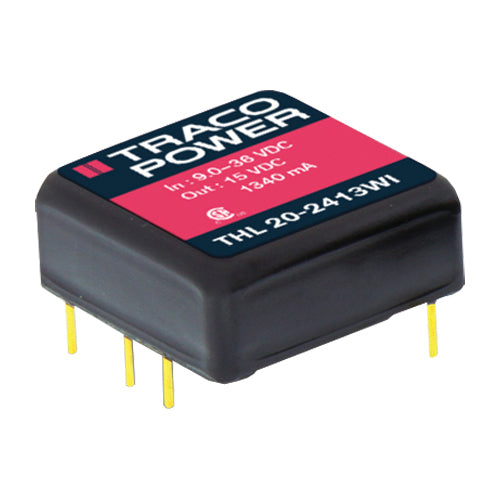

TRACO Power THL 20-2411WI ultra compact 1x1 package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C (up to +85°C with optional heat-sink)
I/O isolation 1500Vdc
Shielded metal case with isolated baseplate
High efficiency
Adjustable output voltage
Optional heat-sink available
Remote On/Off
Short circuit protection
TRACO Power 3 year warranty
THL 20-2411WI
5Vdc 4A, DC-DC Converter 1x1 Package Wide 4:1 Input Voltage RangeManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
9~36Vdc
Output Voltage:
5Vdc
Output Max Current:
4 Amps
Max Power:
20 Watts
Features
TRACO Power THL 20-2411WI ultra compact 1x1 package DC/DC converter
Ultra wide 4:1 input voltage range
Operating temperature: -40~+75°C (up to +85°C with optional heat-sink)
I/O isolation 1500Vdc
Shielded metal case with isolated baseplate
High efficiency
Adjustable output voltage
Optional heat-sink available
Remote On/Off
Short circuit protection
TRACO Power 3 year warranty
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
