TEN 30-4812
12Vdc 2.5A, DC-DC Converter 2x1 Package Wide 2:1 Input Voltage RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
36~75Vdc
Output Voltage:
12Vdc
Output Max Current:
2.5 Amps
Max Power:
30 Watts
Features

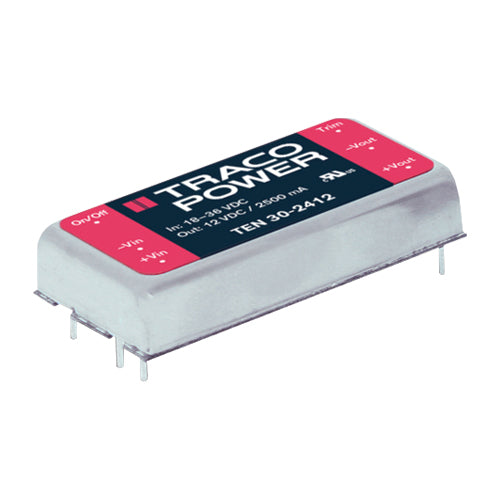

TRACO Power TEN 30-4812 2x1 inch encapsulated 30 Watt DC/DC converter
Wide 2:1 input range
Operating temperature: -40~+85°C
2x1x0.4 inches shielded metal package with isolated baseplate
High efficiency
Remote On/Off
Protections: short circuit / over load / over voltage / thermal shutdown
TRACO Power 3 year warranty
TEN 30-4812
12Vdc 2.5A, DC-DC Converter 2x1 Package Wide 2:1 Input Voltage RangeManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
36~75Vdc
Output Voltage:
12Vdc
Output Max Current:
2.5 Amps
Max Power:
30 Watts
Features
TRACO Power TEN 30-4812 2x1 inch encapsulated 30 Watt DC/DC converter
Wide 2:1 input range
Operating temperature: -40~+85°C
2x1x0.4 inches shielded metal package with isolated baseplate
High efficiency
Remote On/Off
Protections: short circuit / over load / over voltage / thermal shutdown
TRACO Power 3 year warranty
