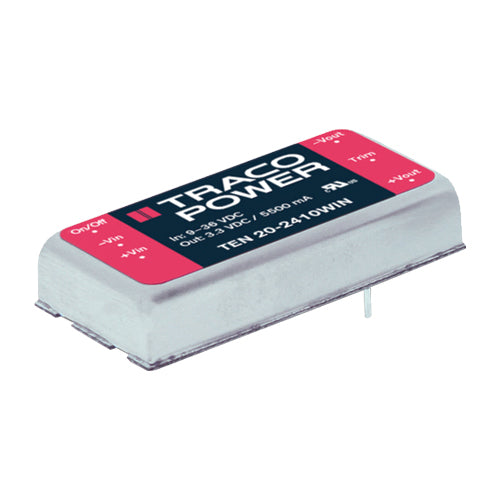

TEN 20-4812WIN
12Vdc 1.67A, DC-DC Converter 2x1 Package Ultra Wide 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
18~75Vdc
Output Voltage:
12Vdc
Output Max Current:
1.67 Amps
Max Power:
20.04 Watts
Features
TRACO Power TEN 20-4812WIN high power density 2x1 metal package
Ultra wide 4:1 input range
Operating temperature: -40~+85°C
I/O isolation 1500Vdc
No minimum load required
Adjustable output voltage
Shielded metal case with insulated baseplate
Remote On/Off
Optional heat sink available
Protections: short circuit / over load / over voltage
TRACO Power 3 year warranty
