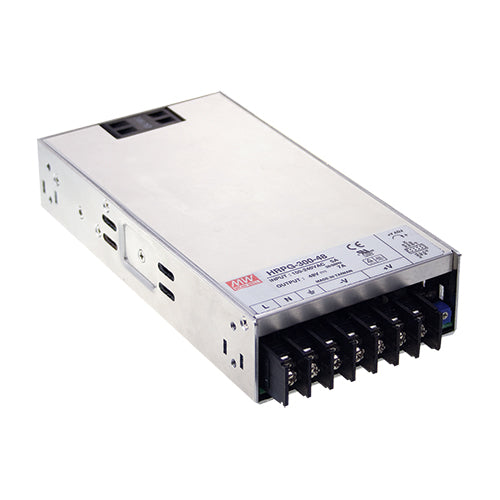

HRPG-300-24
24Vdc 14A PFC Power SupplyManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
14 Amps
Max Power:
336 Watts
Features
AC input range: 85~264Vac
Operating temperature: -40~+70°C
Safety approvals: UL 62368-1 and TUV EN 62368-1
Dim:199mm x 105mm x 41mm
No load power consumption <0.5W
Forced air cooling by built-in DC fan
Withstand 300Vac surge input for 5 seconds
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in 5V / 0.3A standby output
Remote On/Off
LED indicator for power on
1U low profile
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
